WF-8955-AD-MBA RV Power Converter Main Board Assembly - 55 Amp Replacement Unit

Upgrade Your RV Power System with Intelligence and Ease!
The WF-8955-AD-MBA Main Board Assembly is the ultimate solution for RV owners looking to modernize their power conversion. Featuring innovative Auto-Detect technology, this unit identifies the battery type (Lithium-ion or Lead-acid) and automatically adjusts the charging profile to maximize battery life and performance.

Key Features:

Universal Compatibility: A direct replacement for the WF-8955 Series and a perfect upgrade for Parallax 7145 and 7345 series converters.

Smart Auto-Detect Technology: No more manual switching! It intelligently recognizes LiFePO4 and Lead-Acid (AGM/Gel) batteries, ensuring the correct charging curve every time.

High-Performance 55A Output: Delivers 55 Amps of clean, reliable DC power to run your lights, fans, and electronics without a hitch.

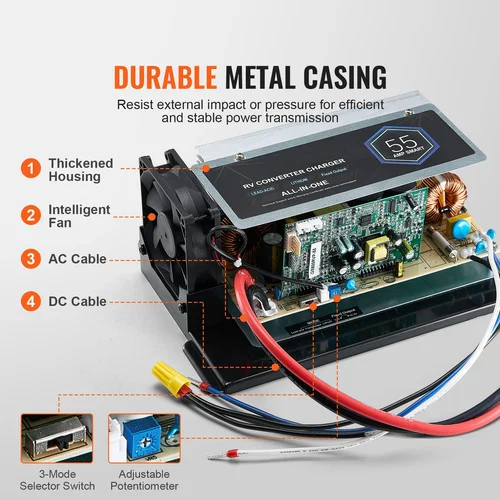

Intelligent Cooling: Equipped with a temperature-controlled silent fan and a sleek metal housing for superior heat dissipation and quiet operation.

Advanced Safety Protection: Tested to ETL standards with 6 layers of protection: Short Circuit, Over-Temperature, Overload, Low Voltage, Over Voltage, and Reverse Polarity.

Specifications:

Model: WF-8955-AD-MBA

Output Current: 55 Amp DC

Input Voltage: 105-130 VAC, 60 Hz

Battery Support: Lithium (LiFePO4), Lead-Acid (AGM, Deep Cycle)

Certification: ETL Compliant
